SKU
5977007
cab printer SQUIX 4MP, center alligned - dispenser, rewinder
cab 5977007 | cab SQUIX 4MP printer buy here
SKU
5977007
cab printer SQUIX 4MP, center alligned - dispenser, rewinder

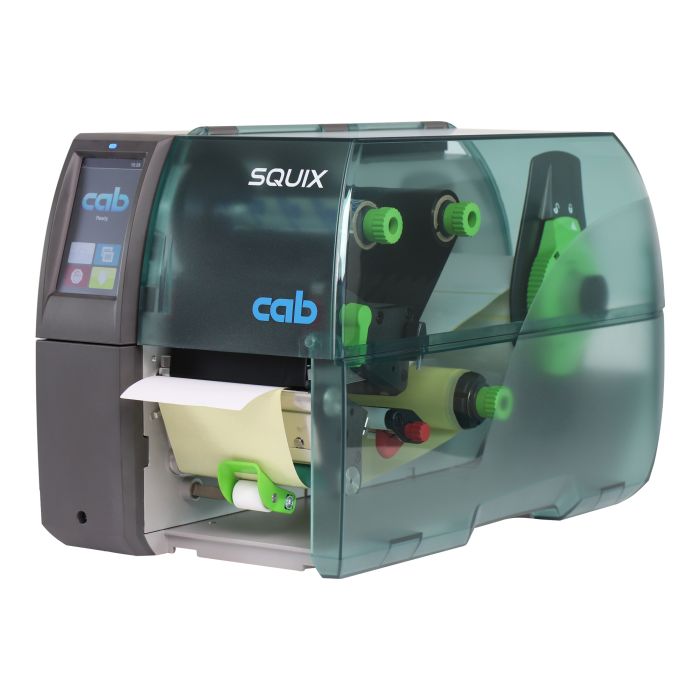

cab SQUIX 4MP, 300 dpi label printers (industrial), LCD color touchscreen, dispenser, rewinder (5977007)
- printing method:
- direct thermal, thermal transfer
- max. print width:
- 105.7 mm
- max. print speed:
- 300 mm/s
- interfaces:
- LAN, USB, USB-Host, WLAN, serial (RS-232)
Advantages of cab SQUIX4:
- Optimized housing for reliable dirt repellents
- High user-friendliness due to intuitive touch display
- Permanent sensor monitoring of the ribbon consumption
- Standard WLAN function
| manufacturer | cab |
|---|---|
| model | SQUIX 4MP |
| productdescription | Etikettendrucker (Industrie) |
| type | model with dispenser, liner rewinder |
| display | LCD touch-screen |
| used device | nein |
| interfaces | serial (RS-232), LAN, USB, USB-Host, WLAN |
| resolution (dpi) | 300 |
| outer diameter label roll (mm) | 205 |
| roll width max. (mm) | 120 |
| roll width min. (mm) | 9 |
| printing method | direct thermal, thermal transfer |
| use info | stand-alone printer |
| core diameter label roll | 3 inch (76.2 mm) |
| label winding | outside wound |
| ribbon winding | Außenwicklung |
| ribbon length max. (m) | 450 |
| ribbon width max. (mm) | 114 |
| printwidth max. (mm) | 105,7 |
| print speed max. (mm/s) | 300 |
| alignment | center alligned |
| scope of delivery | Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| GTIN | 4059312052005 |
| safety instructions | Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work, Das Gerät ist für Stromnetze mit Wechselspannung von 100 V bis 240 V ausgelegt. Es ist nur an Steckdosen mit Schutzleiterkontakt anzuschließen, Do not operate the appliance in a potentially explosive atmosphere., Do not operate the appliance in the vicinity of high-voltage power lines., Do not remove any warning stickers, otherwise dangers cannot be recognized, If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts, Improper tampering with electronic assemblies and their software can cause faults, Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians, Only connect the appliance to devices that carry a safety extra-low voltage, Other improper work or modifications to the appliance can also jeopardize operational safety, Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid, Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections, The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling, The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.)., The maximum emission sound pressure level LpA is below 70 dB(A) |
| manufacturer contact data |
CAB Produkttechnik GmbH & Co. KG Wilhelm- Schickard- Str. 14 76131 Karlsruhe Germany info@cab.de |
|---|---|
| safety instructions |
|
