SKU
5977033

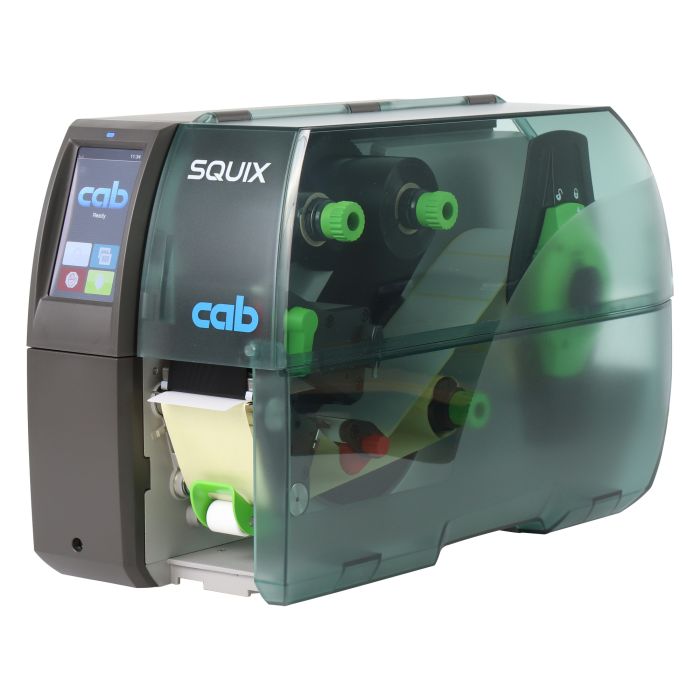

cab printer SQUIX 2P - dispenser, rewinder
cab SQUIX 2P, 600 dpi label printers (industrial), touchscreen, dispenser, rewinder (5977033)
- printing method:
- direct thermal, thermal transfer
- max. print width:
- 54.1 mm
- max. print speed:
- 150 mm/s
- interfaces:
- LAN, USB, WLAN, serial (RS-232)
Advantages of the cab SQUIX 2P:
- Space saving device for printing small label formats
- High user-friendliness due to intuitive touch display
- Standard WLAN function
Successor of the well-known CAB A2+
The cab SQUIX 2p is the successor of the CAB A2+ with extremely fast high-speed processor and new optimized firmware. As a user you benefit from a 4.3 inch color display with touch screen and numerous interfaces and peripheral connections. The 600 dpi model prints at a maximum speed of 150 mm/s.
| manufacturer | cab |
|---|---|
| model | SQUIX 2P |
| productdescription | Etikettendrucker (Industrie) |
| type | model with dispenser, liner rewinder |
| display | touch-screen |
| used device | nein |
| interfaces | serial (RS-232), LAN, USB, WLAN |
| resolution (dpi) | 600 |
| outer diameter label roll (mm) | 205 |
| roll width max. (mm) | 67 |
| roll width min. (mm) | 25 |
| printing method | direct thermal, thermal transfer |
| core diameter label roll | 3 inch (76.2 mm) |
| label winding | outside wound |
| ribbon winding | Außenwicklung |
| ribbon length max. (m) | 450 |
| ribbon width max. (mm) | 57 |
| printwidth max. (mm) | 54,1 |
| print speed max. (mm/s) | 150 |
| scope of delivery | Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| GTIN | 4059312086314 |
| safety instructions | Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work, Das Gerät ist für Stromnetze mit Wechselspannung von 100 V bis 240 V ausgelegt. Es ist nur an Steckdosen mit Schutzleiterkontakt anzuschließen, Do not operate the appliance in a potentially explosive atmosphere., Do not operate the appliance in the vicinity of high-voltage power lines., Do not remove any warning stickers, otherwise dangers cannot be recognized, If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts, Improper tampering with electronic assemblies and their software can cause faults, Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians, Only connect the appliance to devices that carry a safety extra-low voltage, Other improper work or modifications to the appliance can also jeopardize operational safety, Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid, Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections, The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling, The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.)., The maximum emission sound pressure level LpA is below 70 dB(A) |
| manufacturer contact data |
CAB Produkttechnik GmbH & Co. KG Wilhelm- Schickard- Str. 14 76131 Karlsruhe Germany info@cab.de |
|---|---|
| safety instructions |
|
