- cab EOS5, 203 dpi desktop label printer, model with tear-off edge (5978211)

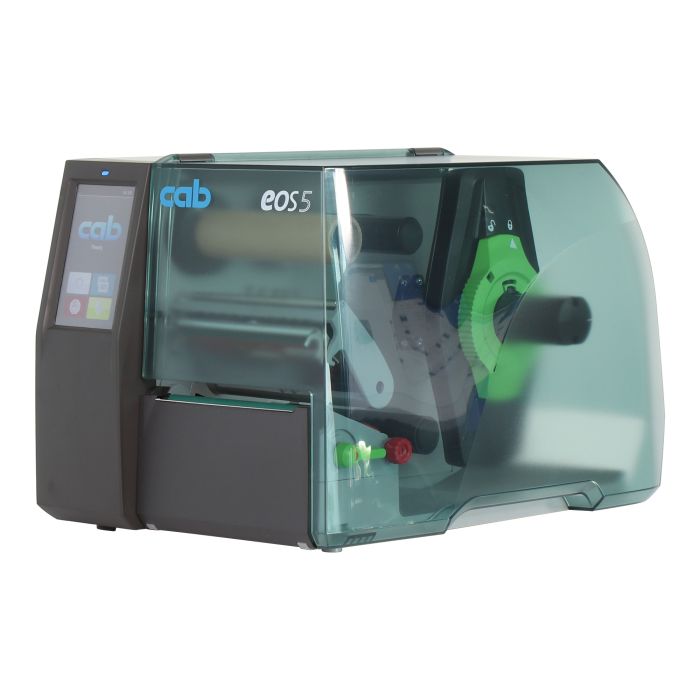

cab printer EOS5 - tear-off edge
- printing method:
- direct thermal, thermal transfer
- max. print width:
- 108 mm
- max. print speed:
- 150 mm/s
- interfaces:
- LAN, USB, serial (RS-232)
Advantages of cab EOS5:
- High capacity for large label rolls
- Up to 20% faster printing processes
- Improved usability thanks to intuitive touch screen
- Suitable for stand-alone operation without PC
- Uncomplicated exchange of wearing parts
Cab EOS5 - the further development of the EOS4 printer
Optimize your printing processes with the successor model of the approved cab EOS4 label printer, the cab EOS5! This printer model for label rolls up to max. 203 mm roll outer diameter increases the speed of internal label printing by up to 20%. This is realized by a 800 MHz processor, which allows printing speeds of max. 150 mm/s. The cab EOS 5 is now able to detect almost any label material thanks to a transmitted light sensor and a reflex sensor. In addition, the generous internal memory (50 MB IFFS data memory, 256 MB RAM memory) allows to recall own layouts and settings without additional media. Nevertheless, the label printer is equipped with numerous slots for USB, UBS Host and peripheral devices.
manufacturer | cab |
---|---|
model | EOS5 |
productdescription | desktop printer |
type | model with tear-off edge |
used device | nein |
interfaces | serial (RS-232), LAN, USB |
resolution (dpi) | 203 |
outer diameter label roll (mm) | 203 |
roll width max. (mm) | 120 |
roll width min. (mm) | 25 |
printing method | direct thermal, thermal transfer |
use info | stand-alone printer |
core diameter label roll | 1,5 inch (38,1 mm) - 3 inches (76,2 mm) |
label winding | outside wound |
ribbon winding | Außenwicklung |
ribbon length max. (m) | 360 |
ribbon width max. (mm) | 114 |
printwidth max. (mm) | 108 |
print speed max. (mm/s) | 150 |
alignment | center alligned |
scope of delivery | Printer(s), EU power cord, USB connection cable, ribbon core, cleansing wipe, instruction manual, free telephone support, software |
operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
GTIN | 4059312106494 |
manufacturer contact data |
CAB Produkttechnik GmbH & Co. KG Wilhelm- Schickard- Str. 14 76131 Karlsruhe Germany info@cab.de |
---|---|
safety instructions |
|
