SKU
ZT62063-T2E0100Z
Zebra printer ZT620 - dispenser, rewinder
ZT62063-T2E0100Z Zebra industrial printers buy here
SKU
ZT62063-T2E0100Z
Zebra printer ZT620 - dispenser, rewinder

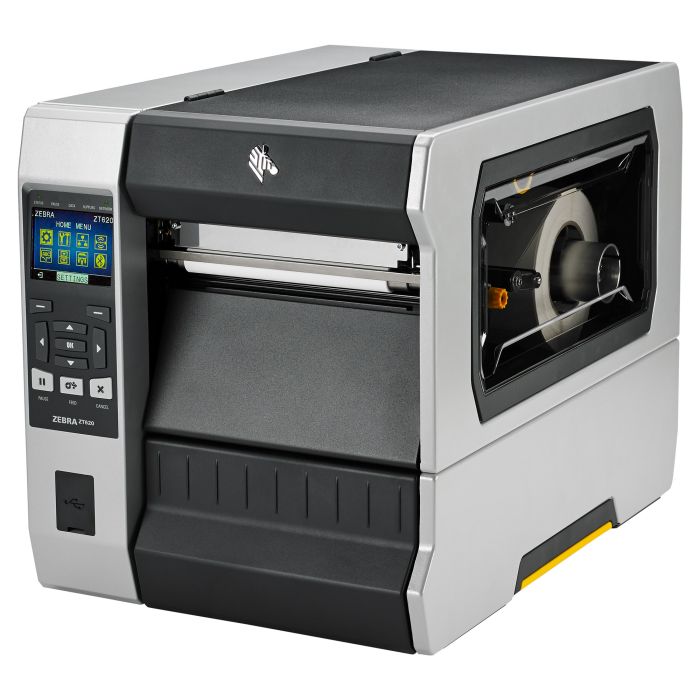

Zebra ZT620, 300 dpi industrial label printer, LCD display, dispenser, rewinder (ZT62063-T2E0100Z)
- printing method:
- direct thermal, thermal transfer
- max. print width:
- 168 mm
- max. print speed:
- 305 mm/s
- interfaces:
- Bluetooth, LAN, USB, serial (RS-232)
Advantages of the Zebra ZT620:
- High maximum print width of 168 mm for large format labels
- Intelligent technology and increased performance
- Improved user-friendliness due to color LCD display
- Compatible with device management software and Link-OS-applications
The ZT620 for large label formats
The ZT620 model with dispenser is the successor of the 140Xi4 from Zebra. The ZT620 with 300 dpi resolution processes your consumables at a maximum speed of 203 mm/s and a print width of 168 mm. These features make the device especially suitable for large format labels.
Another special feature of the ZT620 is the easy to read color display, which lights up red as soon as an error occurs. The stable metal housing with integrated side cover additionally protects the printer from dirt, dust and moisture - even in harsh industrial environments.
| manufacturer | Zebra |
|---|---|
| model | ZT620 |
| productdescription | Etikettendrucker (Industrie) |
| type | model with dispenser, liner rewinder |
| display | LCD display |
| used device | nein |
| interfaces | serial (RS-232), Bluetooth, LAN, USB |
| resolution (dpi) | 300 |
| outer diameter label roll (mm) | 203 |
| roll width max. (mm) | 178 |
| roll width min. (mm) | 51 |
| printing method | direct thermal, thermal transfer |
| core diameter label roll | 3 inch (76.2 mm) |
| label winding | outside wound |
| ribbon winding | Außenwicklung |
| ribbon length max. (m) | 450 |
| ribbon width max. (mm) | 174 |
| printwidth max. (mm) | 168 |
| print speed max. (mm/s) | 305 |
| scope of delivery | Printer(s), EU power cord, US power cord, ribbon core, instruction manual, free telephone support, software |
| operating system | We recommend this printer for use with windows, we do neither recommend nor support usage with MacOS. |
| GTIN | 4059312076889 |
| safety instructions | Always have service work carried out in a qualified workshop that has the necessary expertise and tools to carry out the required work, Das Gerät ist für Stromnetze mit Wechselspannung von 100 V bis 240 V ausgelegt. Es ist nur an Steckdosen mit Schutzleiterkontakt anzuschließen, Do not operate the appliance in a potentially explosive atmosphere., Do not operate the appliance in the vicinity of high-voltage power lines., Do not remove any warning stickers, otherwise dangers cannot be recognized, If the appliance is operated with the lid open, ensure that people's clothing, hair, jewelry or similar items do not come into contact with the exposed rotating parts, Improper tampering with electronic assemblies and their software can cause faults, Only carry out the actions described in these operating instructions. Further work may only be carried out by trained personnel or service technicians, Only connect the appliance to devices that carry a safety extra-low voltage, Other improper work or modifications to the appliance can also jeopardize operational safety, Risk of crushing when closing the lid. Only hold the lid from the outside when closing and do not reach into the swivel area of the lid, Switch off all affected devices (computer, printer, accessories) before making or disconnecting connections, The appliance or parts of it can become hot during printing. Do not touch during operation and allow to cool down before changing material or dismantling, The device may only be operated in a dry environment and must not be exposed to moisture (splash water, fog, etc.)., The maximum emission sound pressure level LpA is below 70 dB(A) |
| manufacturer contact data |
ZEBRA TECHNOLOGIES GERMANY GMBH Wiesenstraße 5 65843 Sulzbach Germany https://www.zebra.com/de/de/about-zebra/contact-zebra.html |
|---|---|
| safety instructions |
|
In stock
